Quick responce KOBRA EKP 8-14 Red Dot Military rifle scope with 16 levels of reticule brightness & 4 interchangeable reticules AR-15/M16 universal weaver (picatinny) mount. | |||||||||||||||||
EKP-1S
KOBPA is a mil-spec rifle scope that is produced by a military supplier.
It is an active electronic red dot type scope made by Axion-Holding, Russia,
subsidiary of the Izhmash JSC small arms factory, best known as the original
factory producing the Kalashnikov weapons systems, where Kalashnikov himself
is still in charge. During the last several years, Kobra rifle scope has
been in service with special forces units in Chechnya and central Russia.
The scope utilise the same optical scheme as Brownell Holosight, Armson OEG, ATN Ultrasight, Tasco Propoint, and many other red dot scopes. However, it is superior to these scopes taken in one package, for hundreds of dollars less in many cases. The sight does not employ an optical tube, its an open sight. A safe small power LED laser projects a holographic reticle of choice (out of 4) onto a glass objective lens. The shooter looks through the lens while positioning the reticle pointer onto the target. There is no need to level at the target like you do with a usual scope, you can aim FAST with both eyes opened, keeping visial control over the other potential targets. There is no focus adjustements or sight alignment to think about. You simply look at the dot and when you pull the trigger, the shot hit whatever the dot is projected over. Thats why it is called a quick-response sight and is chosen by Russian special forces Spetznaz. The sight is fully adjustable for elevation and windage by the adjustment of thumb-wheels which are protected by hinged caps when they are not in use. Because there are no optical lens system involved, such as in a conventional rifle scope, there is no parallax error or focusing to worry about. The universal weaqver mount will fit any standart weaver mounting base, including all of the AR-15 / M16 and variants. We also carry AKM/Saiga/SVD/SKS version of this scope. |
|||||||||||||||||
The brightness has 16 levels to choose from. This feature is extremely important for adapting to changing lighting conditions, and even night shooting. A brighter reticle also offers lightning quick acquisition of daylight close-in targets, while a finer low brightness reticle dot can be used for careful targeting of long distant targets. Many other types of electronic dot scopes cannot be used for long distance shooting because the dot they project is too big. The Primary advantage of this scope is the amazingly rapid target acquisition time. Several shots can be fired before even iron sights can be accurately aimed at a medium range target. It was designed for engaging fast moving targets and targets appearing for a short period of time in close quarters and urban combat situations in various light conditions.Was initially designed for an assault weapons. It provides clear targeting from 104 lx to 10-2 lx (daylight, twilight and moonlight), one/two-eye targeting, is very effective when shooting from moving vehicles, and allows for perfect kill shots on fast-moving, small and spontaneously appearing targets. 100% waterproof - in fact it works when submerged in water. Reticules can be selected by the simple push of a button, as opposed to having a dial them in. The ON/OFF is a rotary lever and the rheostat, a rocker switch, are all located on the right side of the scope for ease of use. | |||||||||||||||||
Many
US-made sights of this type do not offer fine adjustment of the reticle,
or even quick change of the reticle design. Some are made of plastic but
cost hundreds more. Many were originally designed to be used on paintball
guns and crossbows, and have not been designed from the beginning for rugged
firearms use. The Cobra also has a needed improvement in the laser exit
port. Others simply have a hole, while the EKP-1S has a lens covering the
exit port to keep debris from clogging the port. Many users of other sights
have complained of this problem. The built-in value of this inexpensive
scope is refreshing. Other features include a gold iridium coated primary
lens, which provides superior reflectivity to the shooter, and filters the
laser light to keep the target from observing your infra-red light source.
The sight also has an optional rubber lens hood, which can be attached to
keep extremely bright sunlight from hampering the observation of the reticle
by the shooter. The sight itself is compact, lightweight and robust. Made chiefly of aluminum alloy and steel, it has a black finish matching European AK finishings, such as found on the modern Russian, Bulgarian and Polish AK weapons. The sight is integral with and includes the sight bracket and sight mounting clamp, which will fit any standard European AK or SVD style side mounted optics plate. |
|||||||||||||||||
Magnification
1x Relative field of vision (distance between the shooters eye and reflector at 200+2 mm), degrees 6 +/- 0.1 Eye Relief/Pupil exit distance unlimited Parallax between infinitively removed object and the sighting reticle image, not exceeding, MOA 1 Integral transparency factor, not less, % 60 Reticules quantity 4 Brightness adjustment levels 16 Power source 3 AA batteries |
Maximum
brightness, not less, Ed/i2 4x104 "Dot" reticle size, not exceeding, MOA 1.8 Apparent angular T - reticule vertical line size, MOA 45 +/- 5 Windage adjustment pitch, MOA 1.1 +/- 0.3 Windage, not less, MOA +/- 40' Elevation, not less, MOA +25'/-90' Battery life (using Dot mark under normal climate conditions), hours 100 Overall dimensions 146x38x76 mm Weight 0.355 kg |
||||||||||||||||
Actual research shows that KOBRA type of sight increases aiming effectiveness more than twice during daylight and more than 5 times at nighttime. Each serialized scope assembly consists of the sight housing and mounting bracket, which are aluminum alloy. The mounting clamp at the base of the bracket is steel. The assembly is supplied with an optional rubber hood. Everything is packed in a carrying pouch, which is made of ballistic nylon in MVD Russian Summer Woodland Camo pattern. Items stowed in the pouch include special wrench, cleaning cloth, certificate of inspection and warranty card. |
|||||||||||||||||

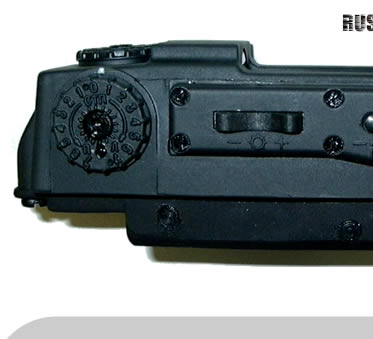

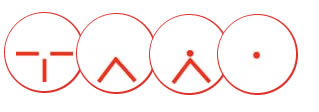

Reticules can be selected by the simple push of a button, as opposed to having a dial them in. The ON/OFF in a form of a rotary lever and both the rheostat and a rocker switch are all located on the right side of the scope for ease of use. | |||||||||||||||||
YOU GET BINOCULARSMART's 15 DAYS MONEY BACK WARRANTY AND 1 YEAR FACTORY WARRANTY. DELIVERED WITHIN 3-5 DAYS FROM OUR USA WAREHOUSE IN MI, 49637. TRACKING NUMBER AVAILIBLE IN YOUR CONTROL PANEL OR HERE | |||||||||||||||||
