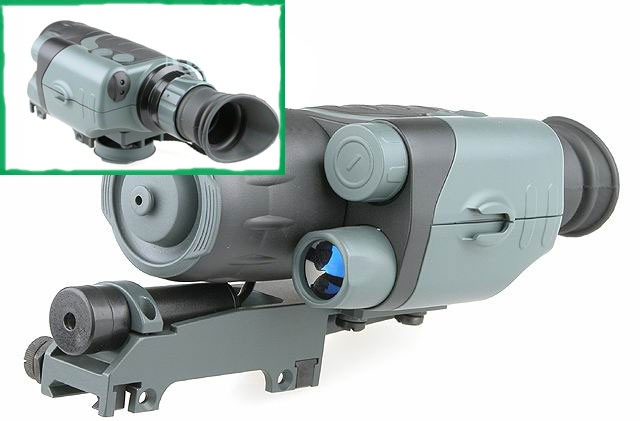

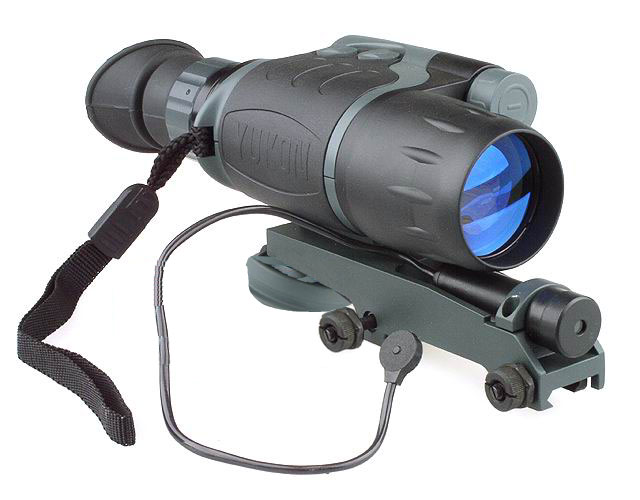

UNIVERSAL NIGHT-VISION SET NV-MT5 - a night vision scope with powerfull IR illuminator, which can be used separately, Laser Pointer (LP) sight, weaver mount and turning harness. Set can be used either as a night vision scope or a night vision rifle-scope. The laser dot of LP serves as an aiming reticule, while the Laser Pointing sight can be used independently during the day-time. Special eyepiece protects shooters eye from the recoil. Withstands 500 g recoil - over than AKM/SVD/AR-15 will generate.

Employ best selected Gen 1+ ICT with special electrostatic protection. Newly developed lenses have improved wavelength / contrast characteristics delivering all available light for amplification by night vision tube.


Employ wide weaver tail mount
Require 2 standart AA type batteries
Powerfull 20 mW IR illuminator with Exclusive PULS™ system
Diopter adjustement from -4 to +4
Padded "corduroy" case
Advanced flash suppressor for battlefield blasts to protect the tube.
Light alloy, rugged rubber armoured body with with easy to reach sensor control buttons and innovative lens cover

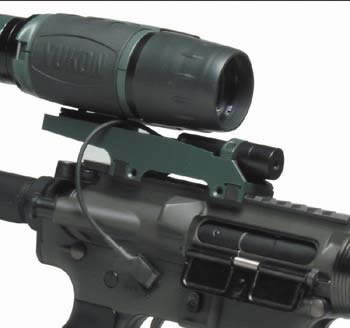

A ready to use kit - comes with everything you need to mount the scope on your rifle.

Exclusive PULS™ system provides the highest level of infrared illumination with minimum power drain on the battery. The PULS™ system allows the maximum possible output by the IR Illuminator diode, then allows it to 'rest' between the impulses to protect the IR from burning out. The pulsing frequency is invisible to a human eye but it penetrates longer distances due the quick energy bursts of the IR.

These rifle-scopes feature:

  • Electrostatic protection of Image-converter tube.Eliminates wandering black dots on the shield of the sight. Not found in any other night vision scopes!
Characteristics Monocular Riflescope

Length, inch/mm

6.4 / 162

10.3 / 261

Width, inch/mm

3.2 / 82

3.2 / 82

Height, inch/mm

2.4 / 60

2.4 / 60

Weight, oz/kg

14,8 / 0,42

24,7 / 0,7

Visual Magnification,

3

1.5

Vertical Resolution, lines/mm

36

36

Angular Field of View, Grad

20

20

Eye Relief, mm

12

45

Objective Lens, mm

42

Maximum distance at which a human figure can be recognized under a clear sky (no fog, dust, etc.) under the light of 1/4 moon (5*10-2 lux minimum), m*

200

Eyepiece adjustment, diopter

4

Built in I.R .Illuminator, yd./m

100/100

Operating Voltage, V

3

Laser Pointer (LP) Wavelength, nm (*optional)

633

LP Dispersion angle, mRad

1.0

LP Power, mW

4.0

LP Angle adjustment, angle/degrees

2,0

LP Voltage, V

6.0 (PX28L)

Temperature Range

-22F to 104F
-30C to 40C

Maximum Humidity, %

93

Operating Time, hour

20

  • S&H&I in USA $20 (2-4 days delivery), CANADA - $27 (7-10 days delivery).
  • INTERNATIONAL BIDDERS WELCOME. EXTRA SHIPPING CHARGES APPLY.

BUY IT NOW FOR $379

YOU GET BINOCULARSMART's 15 DAYS MONEY BACK WARRANTY AND FULL 1 YEAR USA WARRANTY.
