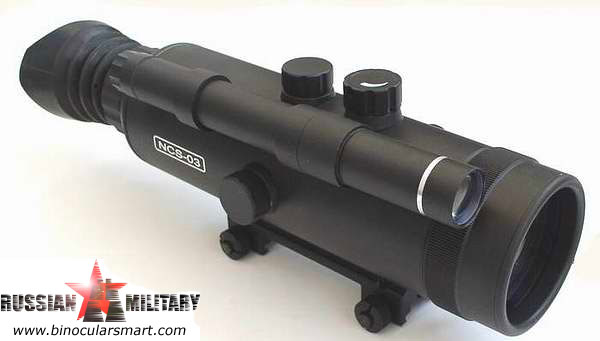

2.5x57 RUSSIAN NIGHT VISION RIFLE SCOPES FALCON NCS-03-PRO with special electrostatic protection, 57 mm objective lense, IR-illuminator red military dot laser reticle and the most precise ever 1 click = 1/9 MOA adjustements.
Manual focus adjustement. Manual reticule brightness adjustement.

First in its class with absolutely silent generator !
First in Gen 1+ class with special electrostatic protection of Image-converter tube,
that eliminates the wandering black dots on the screen. You wont find this feature in other rifle scopes!

Employ wide weaver tail mount
Require 2 standart AA type batteries
Most powerfull 25 (!) mW IR illuminator
Diopter adjustement from -4 to +4
Soft "cordure" case
Light overload protection

The NCS-03 PRO night vision rifle scope is equipped with the best GEN 1+ V8 ICT tube, which was developed just several years ago. It has an advanced brightness and resolution parameters (comparing to all other Russian ICT tubes). The scope was assempled at the largest Belarussian military optical factory with 50 years of military night vision optics expirience.

   Scope can be used with any rifle which has 7/8" (or less) weaver rail or has a place for weaver slideway installation. The large 57 mm multi-coated front lens provides high light gathering capabilities while maintaining the scope's compact profile. This scope has unique elevation and vindage adjustments allowing high precision zero setup.

1 click is just 1/9 MOA !!!

Bright red on green Military Laser Dot Reticule taken together with the ballistics table of the cartridge will give you a chance to calculate the distance to the target, wind correction and target's movement speed.

These rifle-scopes feature:

  • Brightness control of the laser dot reticle;
  • The all-metal high-strength body;
  • Water-resistance;
  • Electrostatic protection of Image-converter tube.Eliminates wandering black dots on the shield of the sight. Not found in any other night vision scopes!
  • Unical silent generator and ICT. Absence of any noise.
  • All-metal shockproof housing

  • Red on green Military Laser Dot Reticule

  • Powerful IR-illuminator

  • Light weight

  • High Resolution

  • Large 57 mm objective lens

  • High precision windage/elevation adjustements (1 click=1/9 MOA)

  • Ergonomically designed controls
      This night vision sight has light overloads protection and electrostatic protection of the ICT (image-converter tube) boosting purity of the vision field. System stands impact loads up to 500g (more than with SVD/TIGER/AK). This night vision scope has the Dedal style of solid-metal housing. Light metall alloy doesnt corrode, is moistureproof, protects optical system from random dips and shocks.  The NCS-03 PRO night vision scope is very user friendly, simple to service, using widely availible cheap AA batteries, the scope is relaible in any climatic conditions.

Visual magnification 2,5x
Field of view
10o
Objective 1.5F85 mm

Max target's vision distance  at natural night  illumination

200  m
1 click value 1/9 MOA
Range of elevation and vindage adjustment ±24
Vertical resolution 35 lines/mm
Power of the IR- illumination not less 25 mW
Tuning of an ocular ±4
Min distance of lens focusing 10 m
Eye Relief 50 mm
Mount type

weaver/AK

Exit pupil diameter 0,55"...0,14"
Supply voltage
3V (2x1.5v  AA)
Operating temperature
+104F to -4F -20 to +40oC
One batteries set operating time up to  50 hour
ICT life time not less 3 000 hour
Overall dimensions 275x100x95 mm
Weight 2.645 lbs (1,2 kg)

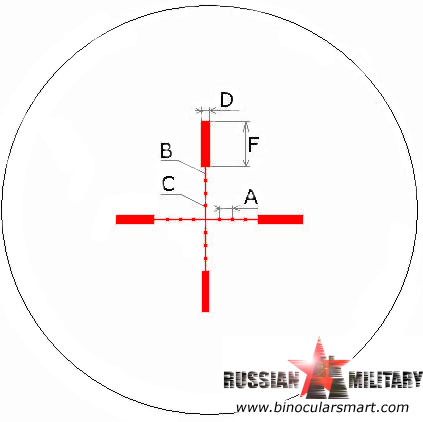

Parts of the grid

Angular size

Targets linear size at a distance of 100 m, cm

MIL

MOA

Grades
A

5

17.189

0.2865

50

B

0.5

1.719

0.0287

5

C

1

3.438

0.0573

10

D

2

6.876

0.1146

20

F

15

51.566

0.8595

150



Distance calculation:

(Target's width or height   in centimeters x 10)/Width or or height in MIL = Distance in meters

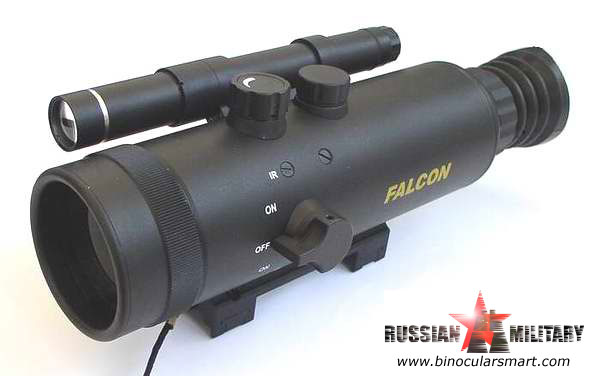

COLLIMATING NIGHT VISION SCOPE FALCON NCS-03 PRO is a perfect hunting tool due to the special laser "Military Red Laser Dot" reticle (a reflection of the beam on the retina) which gives You an extra point when shooting at a moving target. Lets look, how usual aiming works:

You are aligning 3 points (red dots at the picture) to take aim and shoot. When you are aiming with the FALCON night vision laser dot scope, you only need to align two of this points, as shown at this picture:

That's why you dont need to aim carefully to shoot, just point that laser "Red Dot" reticle to the target and shoot. Especially when target is in motion.

* The small power laser beam does not leave the scope and is not visible outside the scope, it is NOT a "LASER-POINTER" system.

BUY IT NOW FOR $419

Y
OU GET BINOCULARSMART's 15 DAYS MONEY BACK WARRANTY AND FULL 1 YEAR USA WARRANTY. DELIVERED WITHIN 5 DAYS

Weaver mount set includes:

Sight ………………………………..…....... 1 pcs.

The operation manual ……...………….1 pcs.

Case…………………………..……........…..1 pcs.

Weaver rail  ……………...….………......1 pcs.

Bolt …………………………………........... 3 pcs.

Box ……………………………..…..….........1 pcs.
